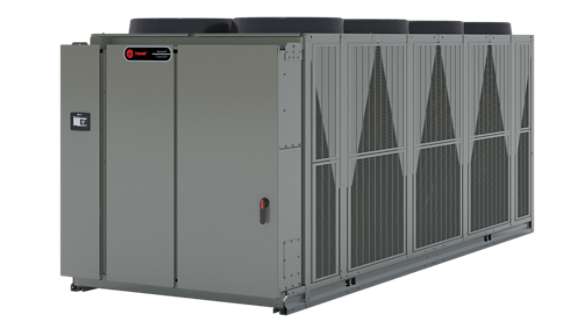

Air-Cooled Chillers

State of the art features

Just-right options for efficient building comfort

High efficiency and low noise are the hallmarks of all our air-cooled chillers. Our robust portfolio features a wide operating map – so you can find the just-right solution for your building. We offer an array of tonnage sizes, efficiencies and performance features to meet your requirements. Whether you need a classic chiller with dependable performance or an environmentally conscious chiller with next-generation refrigerant, there’s a Trane model for you.
Customizable solutions

We understand that you need options because what works for one project may not work for another, even with similar specifications. Location, utility rates and architectural features all introduce challenging variables that must be accounted for. Our large selection gives customers the ability to make targeted equipment customizations with the opportunity to reduce energy intensity and lessen environmental impact.
High efficiency, low-noise-level options

There's a Trane solution that's right for you. Whether your priority is achieving local energy efficiency requirements, achieving LEED® credits, gaining utility rebates, or meeting acoustic requirements there’s a Trane solution for you.You can rest easy knowing that every Trane product is backed by over 100 years of proven reliability and performance

Air-Cooled Chiller models

Proven performance backed by careful engineering. Explore the full portfolio of air-cooled chillers offered by Trane.

Ascend™ Air-Cooled Chiller

Capacity Range: 140 to 230 tons
Refrigerant: Low-GWP R-454B
Compressor Design: Scroll with variable volume ratio
Energy Efficiency Rating (EER): IPLV: 15.8-16.5

Ascend® Air-Cooled Chiller with Integrated Free Cooling

Capacity Range: 150 to 550 tons
Refrigerant: Low-GWP R-513A
Compressor Design: Helical rotary screw
Energy Efficiency Rating (EER): IPLV: 19.7-21.6
Enabled by Symbio® 800 unit controller
Integrated Free-cooling option

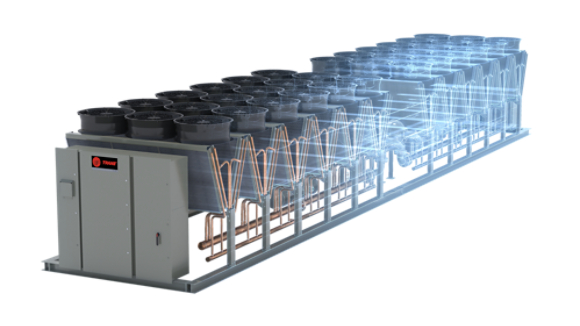

Air-Cooled Oil-Free Magnetic Bearing Chillers

Capacity Range: 60 to 440 tons
Refrigerant: Available with next-generation low-GWP refrigerant R-513A
Meets ASHARE 90.4 without need for waterside economizer
Up to 4 redundant circuits
Ideal for data centers and other mission critical applications

Ascend® Air-to-Water Heat Pump

Electrified heating or cooling
Capacity Range: 140 to 230 tons cooling; 1500 to 2500 MBh heating
Refrigerant: Low-GWP R-454B
Intermediate Discharge Valves on scroll compressor
Variable speed fans
Transverse “V” condenser coil fins
Enabled by Symbio® 800 unit controller
Operating Map Heating Mode: 100 F water at 0 F ambient
ASHRAE 90.1-2019 compliant

CGAM Air-Cooled Scroll Chiller

Capacity Range: 20 to 130 tons (60 Hz)
Refrigerant: Low-GWP R-454B
Energy Efficiency Rating (EER): IPLV: 13.7-16.6 (high-efficiency); 14.5-16.9 (extra-high-efficiency)
Enabled by Symbio® 800 unit controller

Series R® Helical Rotary Chiller

At a Glance:

Capacity Range: 140 to 500 tons
Refrigerant: R-134a
Compressor Design: Helical rotary screw
Energy Efficiency Rating (EER): IPLV: 13.6-15.4 (standard); 14.2-15.9 (high-efficiency); 14.1-15.2 (extra-high-efficiency)

Sintesis® Air-Cooled Chillers

Capacity Range: 115 to 500 tons
Refrigerant: Low-GWP R-513A
Compressor Design: Helical rotary screw
Energy Efficiency Rating (EER): IPLV: 16.0-18.0 (high-efficiency)
Enabled by Symbio® 800 unit controller
