- Airflow Performance ranging up to 4000 CFM
- 4” total static pressure supports MERV8, MERV13 high-efficiency filtration
- 1” double wall casing construction (optional)
- Factory piping kit with optional Pressure Independent Control Valve
- Single Zone VAV control
Blower Coil Unit: Single Zone Variable Speed Air Handler
Blower Coil Unit: Single Zone Variable Speed Air Handler
Single Zone VAV Solution
Trane blower coil units are a cost-effective and efficient way to heat and cool commercial spaces.
Key Benefits:
- Delivers on sustainability with over 50% reduction in casing leakage from prior designs
- Energy efficient EC motors
- Increased variety of coil designs to meet enable decarbonization requirements
- Market leading acoustical performance
- Supports indoor air quality with enhanced static pressure capabilities for today's higher filtration requirements
- Easier to clean, with double-wall construction
Delivers lower total cost of ownership through energy efficiency
Trane blower coil air handlers area an economical and efficient choice for entry-level AHU applications. Our blower coil units combine superior coil performance with high-efficiency EC motor technology.
Additionally, they come with pre-set single-zone variable air volume sequences and optional pressure-independent control valves.
Improves indoor environmental quality for occupants
Our system operates quietly because of our soft ramp variable speed technology, double-wall construction, and better sound attenuators. This creates a pleasant atmosphere in any building.
Innovative air discharge temperature control algorithms and expanded filtration capabilities enhance indoor air quality and stabilize temperature.
Streamlined installation and maintenance
The controls are already installed and programmed at the factory. Optional Air-Fi® Wireless is available. Lifting brackets are integrated. Valve kits are pre-designed to make installation quicker and more reliable.
The VelociTach™ motor control board has an LED display and manual controls. It also has tool-less filter access panels, making diagnostics and maintenance easier than ever.
|

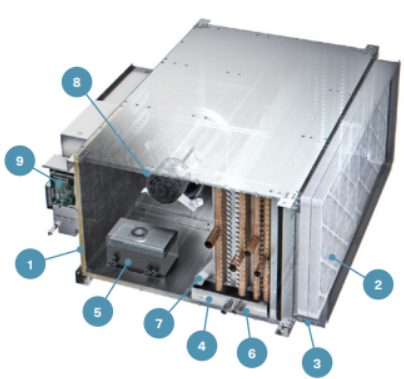

1
|
Double wall casing option
|
Ensures insulation fibers are out of the air stream and simplifies routine maintenance.
|
|
2
|
MERV 13 filter option (LEED)
|
MERV 13 filters capture particles as small as 0.3-1.0 um- this includes bacteria, smoke and dust - and can help earn a point toward a LEED certification.
|
|
3
|
Filter fit and accessibility
|
An optional bottom (horizontal units) filter access box is available to improve accessibility. Easy filter access facilitates scheduled changes. Tool less service enhances easy serviceability.
|
|
4
|
Removable, sloped drain pain
|
Sloped drain pans eliminate water accumulation and associated mold growth. Removable drain pans are easily cleaned during routine maintenance.
|
|
5
|
Increased static pressure capabilities
|
Increased static pressure capabilities
|
|
6
|
Non-corrosive drain pan
|
Drain pan will not rust and minimizes the possibility of drain clogs, preventing water accumulation.
|
|
7
|
Coil mounting
|
Coils are conveniently mounted above the drain pan on rails so they can slide in and out for easy cleaning.
|
|
8
|
EC Motor
|
Variable speed ECM technology means units operate at low speeds for more time. This improves dehumidification, a key factor for IAQ and comfort.
|
|
9
|
Factory programmed mounted controls
|
Pre-programmed Single Zone VAV control enables improved part load dehumidification
|
